2SD1559 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SD1559

Datasheet Details

Part number 2SD1559
Manufacturer Hitachi Semiconductor
File Size 36.63 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SD1559 Datasheet
Additional preview pages of the 2SD1559 datasheet.

📁 Similar Datasheet

  • 2SD1559 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1559 - NPN Transistor (INCHANGE)
  • 2SD155 - NPN Transistor (INCHANGE)
  • 2SD1550 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1550 - NPN Transistor (INCHANGE)
  • 2SD1551 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD1551 - NPN Transistor (INCHANGE)
  • 2SD1552 - NPN Transistor (INCHANGE)
  • 2SD1553 - NPN Transistor (INCHANGE)
  • 2SD1553 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

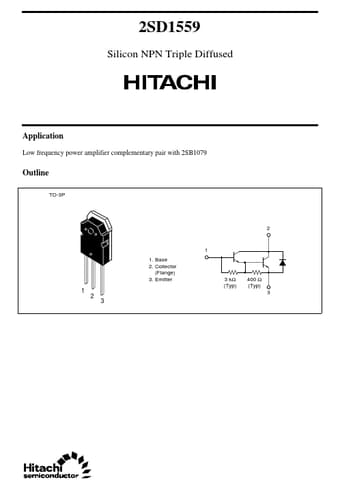

2SD1559 Silicon NPN Triple Diffused Application Low frequency power amplifier complementary pair with 2SB1079 Outline TO-3P 2 1 1. Base 2. Collector (Flange) 3. Emitter 1 3 kΩ (Typ) 400 Ω (Typ) 3 2 3 2SD1559 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Base current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC I C(peak) IB PC * Tj Tstg 1 Ratings 100 100 7 20 30 3 100 150 –55 to +150 Unit V V V A A A W °C °C Electrical Characteristics (Ta = 25°C) Item Collector to base breakdown voltage Symbol V(BR)CBO Min 100 100 100 7 — — 1000 — — — — — — — Typ — — — — — — — — — — — 1.0 9.0 3.
