2SD1555 - NPN Transistor

2SD1555 Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. Low Saturation Voltage. Built-in Damper Diode. Minimum Lot-to-.

2SD1555 Applications

* Designed for color TV horizontal output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 5 A IB Base Current- Co

📥 Download Datasheet

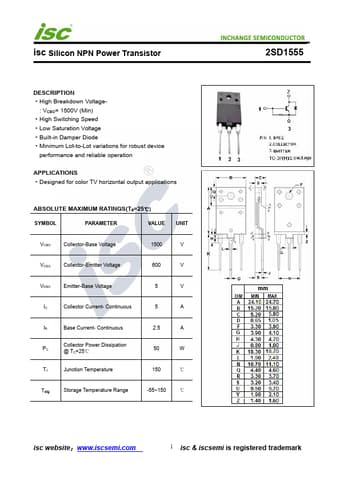

Preview of 2SD1555 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1555
Manufacturer
INCHANGE
File Size
209.49 KB
Datasheet
2SD1555-INCHANGE.pdf
Description
NPN Transistor
