2SD1552 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD1552

Manufacturer:

INCHANGE

File Size:

200.31kb

Download:

📄 Datasheet

Description:

Npn transistor. High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed Low Saturation Voltage Minimum L

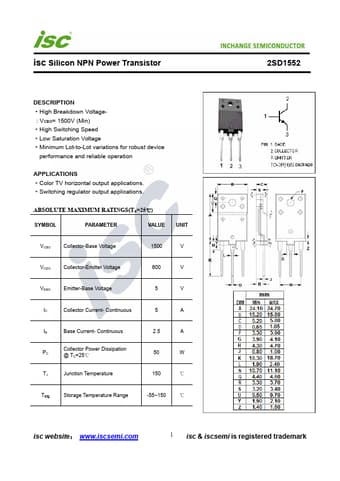

Datasheet Preview: 2SD1552 📥 Download PDF (200.31kb)
Page 2 of 2SD1552

2SD1552 Application

  • Applications
  • Color TV horizontal output applications.
  • Switching regulator output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
