2SD1521
Hitachi Semiconductor
34.91 KB
Silicon npn transistor.

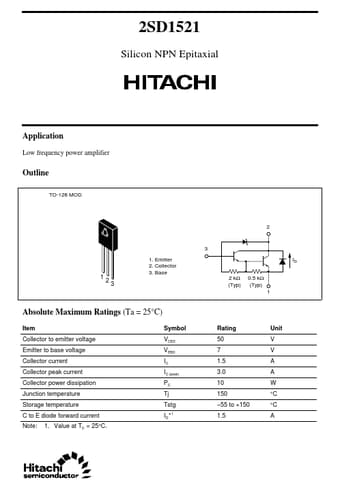

2SD1521
Silicon NPN Epitaxial
Application
Low frequency power amplifier
Outline
TO-126 MOD
2
3 1. Emitter 2. Collector 3. Base ID 2 kΩ (Typ) 0.5 k.
