2SD1522

NPN Transistor

2SD1522 General Description


*Collector-Emitter Breakdown Voltage- : V(BR)CEO= 450V(Min)
*High DC Current Gain : hFE= 500(Min) @ IC= 5A, VCE= 3V
*Fast Switching Speed
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*Designed for audio frequency power amplifie.

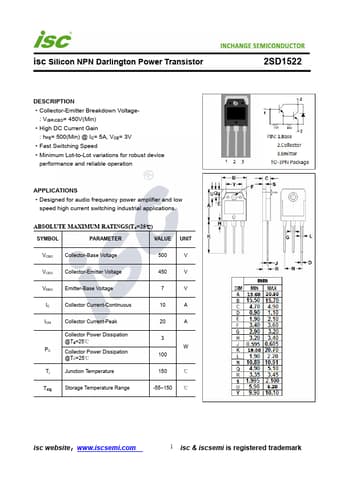

2SD1522 Datasheet (201.98 KB)

Preview of 2SD1522 PDF

Datasheet Details

Part number:

2SD1522

Manufacturer:

INCHANGE

File Size:

201.98 KB

Description:

Npn transistor.
