2SD1525, NPN Transistor

2SD1525 TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington power transistor) 2SD1525 High Current Switching Applications Unit: mm .

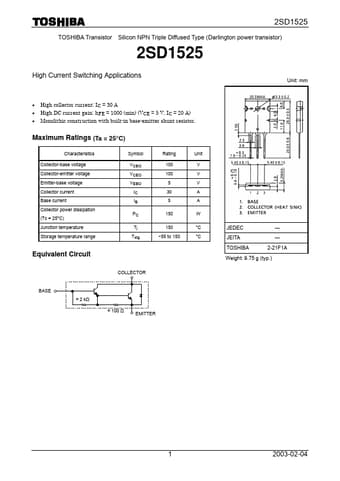

datasheet Preview Page 1 from Datasheet4u.com

2SD1525_ToshibaSemiconductor.pdf

2SD1525 Datasheet Preview — Preview of 2SD1525 PDF

Datasheet Details

Part number:

2SD1525

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

132.46 KB

Description:

NPN Transistor

Applications

* Unit: mm
* High collector current: IC = 30 A
* High DC current gain: hFE = 1000 (min) (VCE = 5 V, IC = 20 A)
* Monolithic construction with built-in base-emitter shunt resistor. Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base
