2SD1894 Datasheet - SavantIC

2SD1894 SILICON POWER TRANSISTOR

*With TO-3PFa package *High DC current gain *Low collector saturation voltage *Complement to type 2SB1254 APPLICATIONS *Power amplification *Optimum for 60W high-fidelity output applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 .

2SD1894_SavantIC.pdf

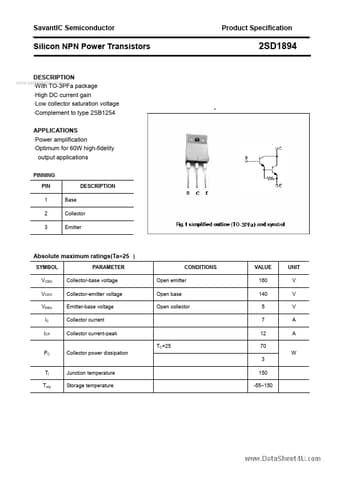

Preview of 2SD1894 PDF
2SD1894 Datasheet Preview Page 2 2SD1894 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1894

Manufacturer:

SavantIC

File Size:

151.61 KB

Description:

Silicon power transistor.
