2SD1897 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SD1897

Manufacturer:

SavantIC

File Size:

138.87kb

Download:

📄 Datasheet

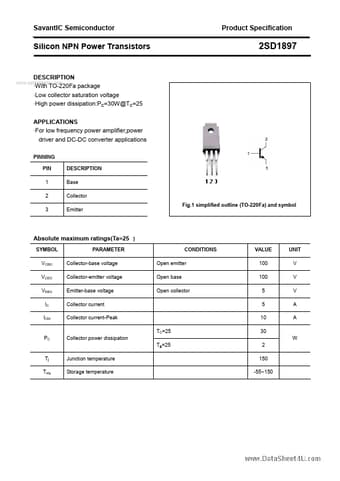

Description:

Silicon power transistor.

With TO-220Fa package

Low collector saturation voltage

High power dissipation:PC=30W@TC=25 APPLICATIONS

2SD1897 Application

• Applications
• For low frequency power amplifier,power driver and DC-DC converter applications PINNING PIN 1 2 3 DESCRIPTION Base Collector E
