2SD2539

SILICON POWER TRANSISTOR

2SD2539 General Description


*With TO-3P(H)IS package
*High voltage ;high speed
*Low saturation voltage
*Bult-in damper diode APPLICATIONS
*Horizontal deflection output for color TV PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol DESCRIPTION Absolute maximum ratings.

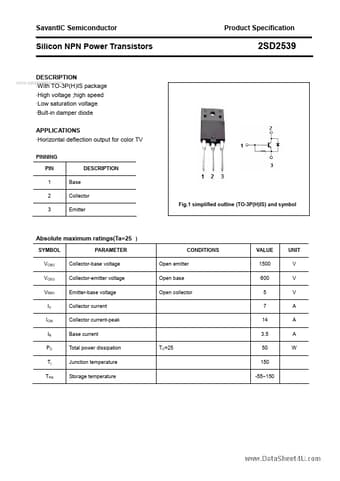

2SD2539 Datasheet (317.01 KB)

Preview of 2SD2539 PDF

Datasheet Details

Part number:

2SD2539

Manufacturer:

SavantIC

File Size:

317.01 KB

Description:

Silicon power transistor.
