BDW52C Datasheet, Transistor, SavantIC

PDF File Details

Part number:

BDW52C

Manufacturer:

SavantIC

File Size:

138.01kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

BDW52C Application

• Applications

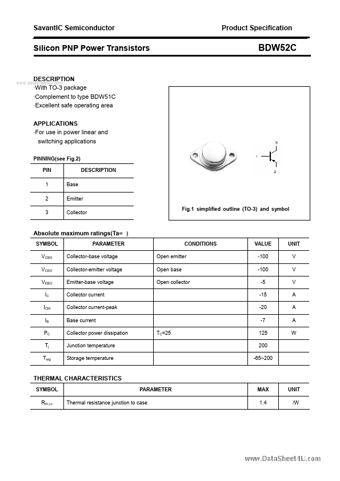

• For use in power linear and switching applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outlin
