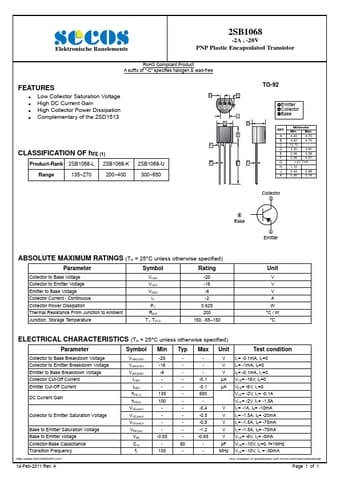

* Low Collector Saturation Voltage
* High DC Current Gain
* High Collector Power Dissipation
* Complementary of the 2SD1513 CLASSIFICATION OF hFE (1) Product-Rank 2SB1068-L 2SB1068-K Range 135~270 200~400 2SB1068-U 300~650 GH J AD B K E CF TO-92 Emitter Collector
* Base
2SB1068
SeCoS
79.72 KB
Pnp plastic encapsulated transistor.
Elektronische Bauelemente
2SB1068
-2A , -20V PNP Plastic Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-fr.
