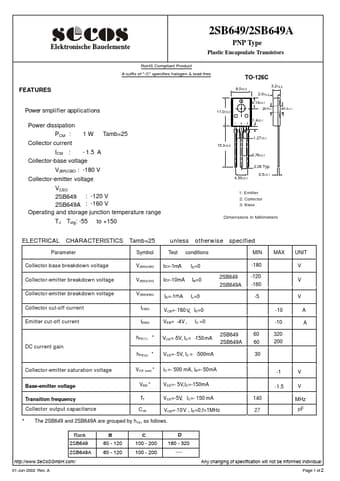

* Power smplifier applications Power dissipation PCM : 1 W £¨ Tamb=25¡æ £© Collector current ICM : - 1.5 A Collector-base voltage V(BR)CBO : -180 V Collector-emitter voltage VCEO 2SB649 : -120 V 2SB649A : -160 V Operating and storage junction temperature range TJ£¬Tstg: -55¡æ to +150 ELECTRICAL CHARAC
2SB649
SeCoS
307.77 KB
Pnp transistor.
2SB649/2SB649A
Elektronische Bauelemente
RoHS Compliant Product A suffix of "-C" specifies halogen & lead-free
PNP Type
Plastic Encapsulate Transisto.
