2N3810DCSM - DUAL HIGH GAIN PNP TRANSISTORS

Seme LAB

Datasheet Details

Part number	2N3810DCSM
Manufacturer	Seme LAB
File Size	30.13 KB
Description	DUAL HIGH GAIN PNP TRANSISTORS
Datasheet	2N3810DCSM Datasheet
Additional preview pages of the 2N3810DCSM datasheet.

📁 Similar Datasheet

2N3810DCSM - SILICON DUAL MATCHED PNP TRANSISTORS (TT)
2N3810 - PNP Transistor (Semicoa Semiconductor)
2N3810 - PNP SILICON DUAL TRANSISTOR (Microsemi Corporation)
2N3810 - (2N3806 - 2N3811) Dual AMplifier Transistors (Motorola)
2N3810 - PNP Silicon Dual Amplifier Transistor (NES)
2N3810 - SILICON DUAL PNP TRANSISTORS (Central Semiconductor)
2N3810A - (2N3806 - 2N3811) Dual AMplifier Transistors (Motorola)
2N3810A - SILICON DUAL PNP TRANSISTORS (Central Semiconductor)
2N3810A - PNP Silicon Dual Amplifier Transistor (NES)
2N3810HR - Hi-Rel PNP dual matched bipolar transistors (STMicroelectronics)

Other Datasheets by Seme LAB

2N3831 - Bipolar NPN Device
2N3879 - NPN POWER SILICON TRANSISTOR
2N3007 - Bipolar NPNP Device
2N3011 - Bipolar NPN Device
2N3012 - Bipolar PNP Device
2N3012CSM - Bipolar PNP Device
2N3019 - NPN SILICON TRANSISTOR
2N3019CSM - NPN TRANSISTOR

Full PDF Text Transcription

Click to expand full text

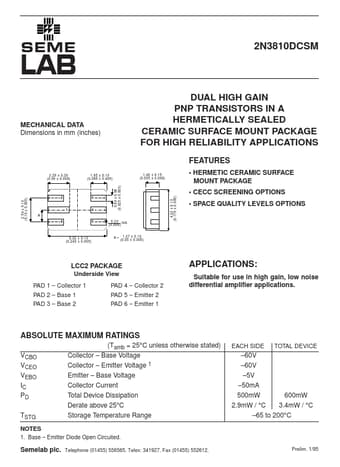

LAB MECHANICAL DATA Dimensions in mm (inches) SEME 2N3810DCSM DUAL HIGH GAIN PNP TRANSISTORS IN A HERMETICALLY SEALED CERAMIC SURFACE MOUNT PACKAGE FOR HIGH RELIABILITY APPLICATIONS FEATURES • HERMETIC CERAMIC SURFACE MOUNT PACKAGE • CECC SCREENING OPTIONS 4.32 ± 0.13 (0.170 ± 0.005) 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) 0.64 ± 0.08 (0.025 ± 0.003) 1.40 ± 0.15 (0.055 ± 0.006) 2.54 ± 0.13 (0.10 ± 0.005) 2 1 3 4 5 • SPACE QUALITY LEVELS OPTIONS A 6 0.23 rad. (0.009) 1.27 ± 0.13 (0.05 ± 0.005) 6.22 ± 0.13 (0.245 ± 0.005) A= LCC2 PACKAGE Underside View PAD 1 – Collector 1 PAD 2 – Base 1 PAD 3 – Base 2 PAD 4 – Collector 2 PAD 5 – Emitter 2 PAD 6 – Emitter 1 APPLICATIONS: Suitable for use in high gain, low noise differential amplifier applications.

Published: Mar 23, 2005 |
