2N3811 - PNP Transistor

Datasheet Summary

Features

  • Two electrically isolated, matched PNP transistors as one dual unit. Housed in TO-78 case. Also available in chip form using the 0220 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/336 which Semicoa meets in all cases. Generic Part Number: 2N3810 REF: MIL-PRF-19500/336 TO-78 Maximum Ratings TC = 25oC unless otherwise specified Rating Collector-Emitter voltage Collector-Base Voltage Emitter-Base voltage Collector Current, Continuous.

📥 Download Datasheet

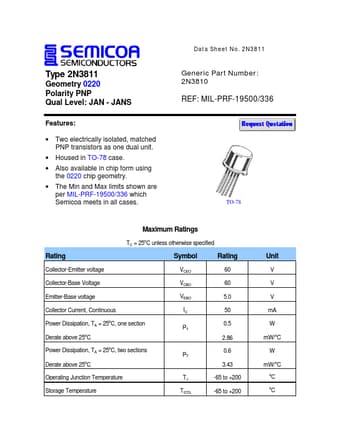

Datasheet preview – 2N3811

Datasheet Details

Part number 2N3811
Manufacturer Semicoa Semiconductor
File Size 79.75 KB
Description PNP Transistor
Datasheet download datasheet 2N3811 Datasheet
Additional preview pages of the 2N3811 datasheet.

📁 Similar Datasheet

  • 2N3811 - PNP SILICON DUAL TRANSISTOR (Microsemi Corporation)
  • 2N3811 - (2N3806 - 2N3811) Dual AMplifier Transistors (Motorola)
  • 2N3811 - PNP Silicon Dual Amplifier Transistor (NES)
  • 2N3811 - SILICON DUAL PNP TRANSISTORS (Central Semiconductor)
  • 2N3811A - (2N3806 - 2N3811) Dual AMplifier Transistors (Motorola)
  • 2N3811A - SILICON DUAL PNP TRANSISTORS (Central Semiconductor)
  • 2N3811A - PNP Silicon Dual Amplifier Transistor (NES)
  • 2N3811L - PNP SILICON DUAL TRANSISTOR (Microsemi Corporation)
  • 2N3811U - PNP SILICON DUAL TRANSISTOR (Microsemi Corporation)
  • 2N381 - PNP Transistor (Motorola)
Other Datasheets by Semicoa Semiconductor

Full PDF Text Transcription

Click to expand full text
Data Sheet No. 2N3811 Type 2N3811 Geometry 0220 Polarity PNP Qual Level: JAN - JANS Features: • • • • Two electrically isolated, matched PNP transistors as one dual unit. Housed in TO-78 case. Also available in chip form using the 0220 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/336 which Semicoa meets in all cases. Generic Part Number: 2N3810 REF: MIL-PRF-19500/336 TO-78 Maximum Ratings TC = 25oC unless otherwise specified Rating Collector-Emitter voltage Collector-Base Voltage Emitter-Base voltage Collector Current, Continuous Power Dissipation, TA = 25 C, one section Derate above 25oC Power Dissipation, TA = 25oC, two sections Derate above 25 C Operating Junction Temperature Storage Temperature o o Symbol VCEO VCBO VEBO IC PT Rating 60 60 5.0 50 0.5 2.
