SM4N60S-I - 600V N-Channel MOSFET

📥 Download Datasheet

SM4N60S-I Datasheet Preview — Preview of SM4N60S-I PDF

datasheet Preview Page 2

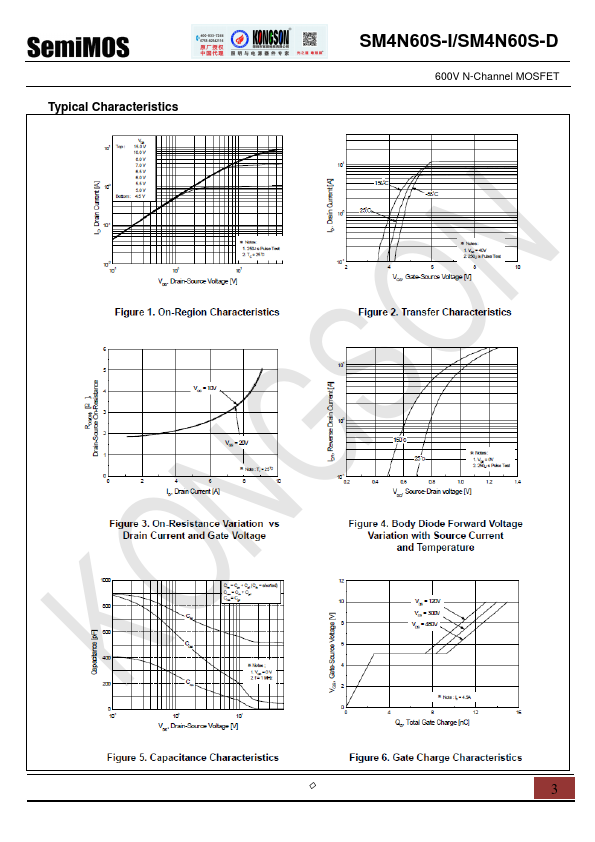

datasheet Preview Page 3

Datasheet Details

Part number	SM4N60S-I
Manufacturer	SemiMOS
File Size	849.71 KB
Description	600V N-Channel MOSFET
Datasheet	SM4N60S-I-SemiMOS.pdf

SM4N60S-I Product details

Features

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg=13.3nC (Typ. ).
BVDSS=600V,ID=4A.
RDS(on) : 2.3 Ω (Max) @VG=10V.
100% Avalanche Tested TO‐251 TO‐252 1.Gate (G) 2.Drain (D) 3.Source (S) Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VDSS ID VGS(TH) EAS IAR PD Tj Tstg TL Parameter Drain-Source Voltage Drain Current Gate Threshold Volt.
