SX1282 - Transceiver/MCU/ADC System-on-Chip

Semtech Corporation

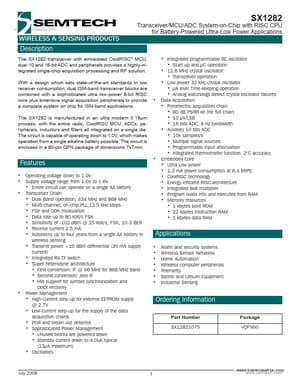

SX1282 Datasheet Preview — Preview of SX1282 PDF

Datasheet Details

Part number	SX1282
Manufacturer	Semtech Corporation
File Size	214.94 KB
Description	Transceiver/MCU/ADC System-on-Chip
Datasheet	SX1282_SemtechCorporation.pdf

SX1282 Product details

Description

Transceiver/MCU/ADC System-on-Chip with RISC CPU for Battery-Powered Ultra-Low Power Applications SX1282 The SX1282 transceiver with embedded CoolRISC® MCU, dual 10 and 16-bit ADC and peripherals provides a highly-integrated single-chip acquisition processing and RF solution.With a design which sets state-of-the-art standards in low receiver consumption, dual ISM-band transceiver blocks are combined with a sophisticated ultra low-power 8-bit RISC core plus extensive signal acquisition periph

Features

Operating voltage down to 1.0V.
Supply voltage range from 1.0V to 1.6V.
Entire circuit can operate on a single AA battery.
Transceiver Chain.
Dual-Band operation, 434 MHz and 868 MHz.
Multi-channel, on-chip PLL,12.5 kHz steps.
FSK and OOK modulation.
Data rate up to 80 kbit/s FSK.
Sensitivity of -102 dBm @ 25 kbit/s, FSK, 10-3 BER.
Receive current 2.5 mA.
Autonomy up to.
