SX1262, SX1261 RF Transceiver

SX1262 Description

SX1261/2 Long Range, Low Power, sub-GHz RF Transceiver ŶĂůŽŐ&ƌŽŶƚŶĚΘĂƚĂŽŶǀĞƌƐŝŽŶ DĂƚĐŚŝŶŐ н >W& >E W   W>> K^ >ŽZĂΠ DŽĚĞŵ &^.
SX1261 and SX1262 sub-GHz radio transceivers are ideal for long range wireless applications.

SX1262 Applications

* Both devices are designed for long battery life with just 4.2 mA of active receive current consumption. The SX1261 can transmit up to +15 dBm and the SX1262 can transmit up to +22 dBm with highly efficient integrated power amplifiers. These devices support LoRa® and Long Range FHSS modulations for

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SX1262, SX1261. Please refer to the document for exact specifications by model.

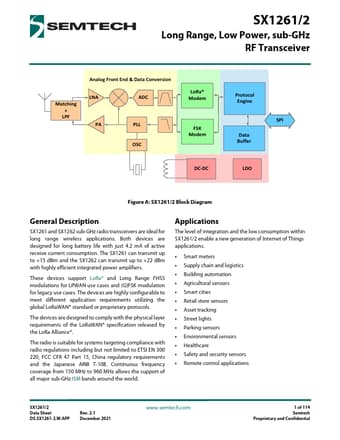

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SX1262, SX1261
Manufacturer
Semtech
File Size
3.59 MB
Datasheet
SX1261-Semtech.pdf
Description
RF Transceiver
Note
This datasheet PDF includes multiple part numbers: SX1262, SX1261.
Please refer to the document for exact specifications by model.
