SX8654 Datasheet - Semtech

SX8654 Haptics Enabled 4/5-Wire Resistive Touchscreen Controller

The SX8654, SX8655 and SX8656 belong to a family of high performance haptics enabled 4/5-wire resistive touch screen controller with proximity detection, optimized for hand held applications such as mobile phones, portable music players, game machines, point-of-sales terminal and other consumer and .

SX8654 Features

* low power modes which intelligently minimize current in operation as well as in automatic shut-down. A capacitive proximity detection circuit has been integrated into the SX8654 and SX8

SX8654-Semtech.pdf

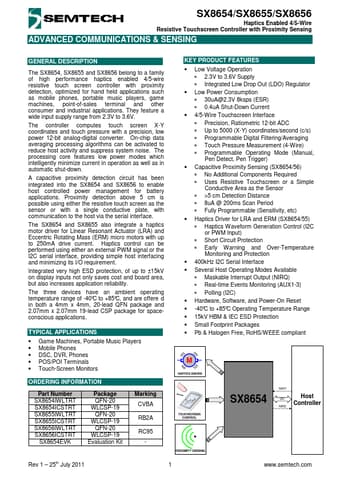

Preview of SX8654 PDF
SX8654 Datasheet Preview Page 2 SX8654 Datasheet Preview Page 3

Datasheet Details

Part number:

SX8654

Manufacturer:

Semtech

File Size:

2.13 MB

Description:

Haptics enabled 4/5-wire resistive touchscreen controller.
