BB304A Datasheet - Siemens Group

BB304A Silicon Variable Capacitance Diode (For FM tuners Monolithic chip with common cathode for perfect tracking of both diodes)

Silicon Variable Capacitance Diode Preliminary Data q q q q q BB 304A For FM tuners Monolithic chip with common cathode for perfect tracking of both diodes Uniform "square law" characteristics Ideal Hifi tuning device when used in Low-distortion back-to back configuration Color-coded capacitance subgroups available (see characteristics) Type Ordering Code (tape and reel) Q62702-B118 Pin Configuration 1 2 3 A1 C1/C2 A2 Marking Package BB 304A color coded capacitance groups TO-92 Maximu.

BB304A_SiemensSemiconductorGroup.pdf

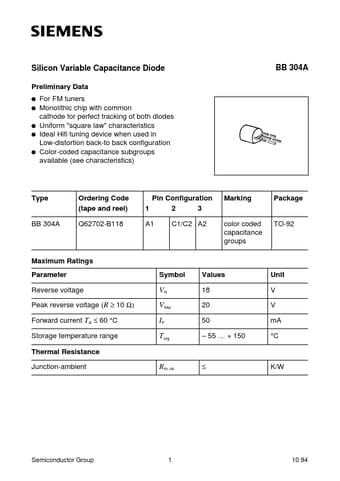

Preview of BB304A PDF
BB304A Datasheet Preview Page 2 BB304A Datasheet Preview Page 3

Datasheet Details

Part number:

BB304A

Manufacturer:

Siemens Group

File Size:

60.17 KB

Description:

Silicon variable capacitance diode (for fm tuners monolithic chip with common cathode for perfect tracking of both diodes).
