BB301C - Build in Biasing Circuit MOS FET IC UHF RF Amplifier

BB301C Description

BB301C Build in Biasing Circuit MOS FET IC VHF RF Amplifier ADE-208-507 1st.Edition .

BB301C Features

* Build in Biasing Circuit; To reduce using parts cost & PC board space.
* Low noise characteristics; (NF = 1.3 dB typ. at f = 200 MHz)
* Withstanding to ESD; Build in ESD absorbing diode . Withstand up to 200 V at C = 200 pF, Rs = 0 conditions. Outline CMPAK
* 4 2 3

📥 Download Datasheet

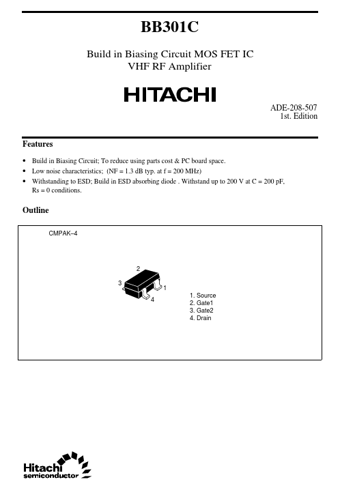

Preview of BB301C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB301C
Manufacturer
Hitachi
File Size
46.17 KB
Datasheet
BB301C_HitachiSemiconductor.pdf
Description
Build in Biasing Circuit MOS FET IC UHF RF Amplifier
