BCV61 Datasheet - Siemens Semiconductor Group

BCV61 NPN Silicon Double Transistors (To be used as a current mirror Good thermal coupling and VBE matching)

NPN Silicon Double Transistors Preliminary Data To be used as a current mirror q Good thermal coupling and VBE matching q High current gain q Low emitter-saturation voltage q BCV 61 Type BCV 61 A BCV 61 B BCV 61 C Marking 1Js 1Ks 1Ls Ordering Code (tape and reel) Q62702-C2155 Q62702-C2156 Q62702-C2157 Pin Configuration Package1) SOT-143 Maximum Ratings Parameter Collector-emitter voltage (transistor T1) Collector-base voltage (open emitter) (transistor T1) Emitter-base voltage Collector c.

BCV61_SiemensSemiconductorGroup.pdf

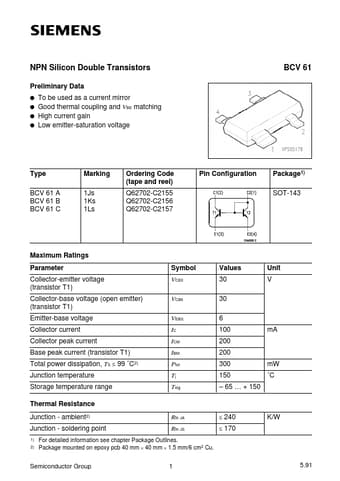

Preview of BCV61 PDF
BCV61 Datasheet Preview Page 2 BCV61 Datasheet Preview Page 3

Datasheet Details

Part number:

BCV61

Manufacturer:

Siemens Semiconductor Group

File Size:

95.11 KB

Description:

Npn silicon double transistors (to be used as a current mirror good thermal coupling and vbe matching).
