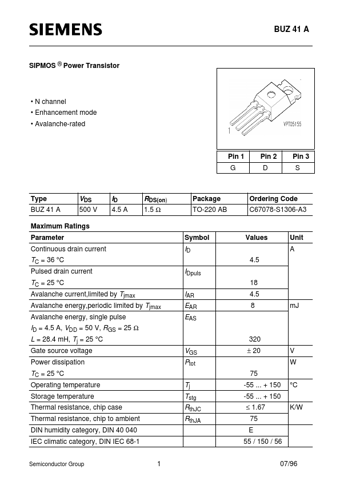

BUZ 41 A
SIPMOS ® Power Transistor
• N channel • Enhancement mode • Avalanche-rated
Pin 1 G
Pin 2 D
Pin 3 S
Type BUZ 41 A
VDS
500 V
ID
4.5 A
RDS(on)
1.5 Ω
Package TO-220 AB
Ordering Code C67078-S1306-A3
Maximum Ratings Parameter Continuous drain current Symbol Values 4.5 Unit A
ID IDpuls
18
TC = 36 °C
Pulsed drain current
TC = 25 °C
Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse
IAR EAR EAS
4.5 8 mJ
ID = 4.5 A, VDD = 50 V, RGS = 25 Ω L = 28.
BUZ41A Datasheet
