HYB3117800BSJ-50 - 2M x 8-Bit Dynamic RAM

Description

N.C.

VCC I/O1 I/O2 I/O3 I/O4 WE RAS N.C.

Features

  • include single + 3.3 V (± 0.3V) power supply, direct interfacing with high-performance logic device families. Ordering Information Type HYB 3117800BSJ-50 HYB 3117800BSJ-60 HYB 3117800BSJ-70 Pin Names A0 to A10 A0 to A9 RAS OE I/O1-I/O8 CAS WE Row Address Inputs Column Address Inputs Row Address Strobe Output Enable Data Input/Output Column Address Strobe Read/Write Input Power Supply (+ 3.3 V) Ground (0 V) not connected Ordering Code Q67100-Q1147 Q67100-Q1148 Package P-SOJ-28-3 P-SOJ-28-3 P-SOJ-.

📥 Download Datasheet

Datasheet preview – HYB3117800BSJ-50

📁 Similar Datasheet

Other Datasheets by Siemens Semiconductor Group

Full PDF Text Transcription

Click to expand full text

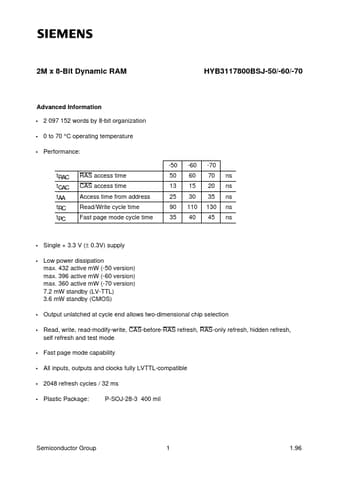

2M x 8-Bit Dynamic RAM HYB3117800BSJ-50/-60/-70 Advanced Information • • • 2 097 152 words by 8-bit organization 0 to 70 °C operating temperature Performance: -50 tRAC tCAC tAA tRC tPC RAS access time CAS access time Access time from address Read/Write cycle time Fast page mode cycle time 50 13 25 90 35 -60 60 15 30 110 40 -70 70 20 35 130 45 ns ns ns ns ns • • Single + 3.3 V (± 0.3V) supply Low power dissipation max. 432 active mW (-50 version) max. 396 active mW (-60 version) max. 360 active mW (-70 version) 7.2 mW standby (LV-TTL) 3.
