Q62702-A1051 Silicon Switching Diode Array

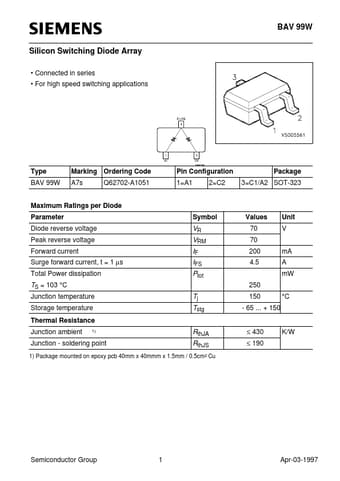

BAV 99W Silicon Switching Diode Array Connected in series For high speed switching applications Type BAV 99W Marking Ordering Code A7s Q62702-A1051 Pin Configuration 1=A1 2=C2 Package 3=C1/A2 SOT-323 Maximum Ratings per Diode Parameter Diode reverse voltage Peak reverse voltage Forward current Surge forward current, t = 1 µs Total Power dissipation Symbol Values 70 70 200 4.5 250 mA A mW 150 - 65 + 150 ≤ 430 ≤ 190 °C Unit V VR VRM IF IFS Ptot Tj Tstg RthJA RthJS TS = .

Q62702-A1051_SiemensSemiconductorGroup.pdf

Q62702-A1051 Datasheet Preview — Preview of Q62702-A1051 PDF

Datasheet Details

Part number:

Q62702-A1051

Manufacturer:

Siemens Semiconductor Group

File Size:

71.41 KB

Description:

Silicon switching diode array.
