Q62702-C2337 Datasheet - Siemens Semiconductor Group

Q62702-C2337 NPN Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ driver circuit)

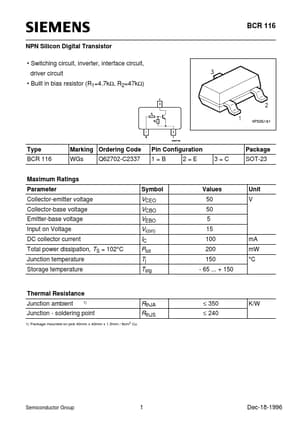

BCR 116 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=4.7kΩ, R2=47kΩ) Type BCR 116 Marking Ordering Code WGs Q62702-C2337 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102°C Junction temperature Storage temperature Symbol Values 50 50 5 .

Q62702-C2337_SiemensSemiconductorGroup.pdf

Q62702-C2337 Datasheet Preview — Preview of Q62702-C2337 PDF

Datasheet Details

Part number:

Q62702-C2337

Manufacturer:

Siemens Semiconductor Group

File Size:

35.29 KB

Description:

Npn silicon digital transistor (switching circuit/ inverter/ interface circuit/ driver circuit).
