Q62702-C2354 NPN Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ driver circuit)

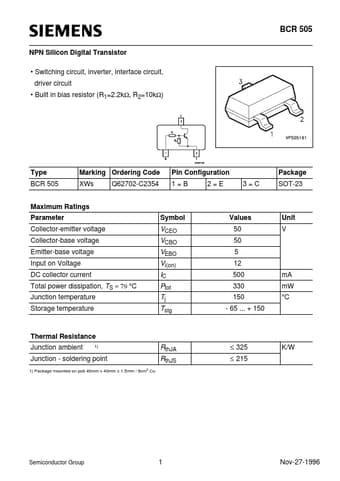

BCR 505 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=2.2kΩ, R2=10kΩ) Type BCR 505 Marking Ordering Code XWs Q62702-C2354 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 79 °C Junction temperature Storage temperature Symbol Values 50 50 5 .

Q62702-C2354_SiemensSemiconductorGroup.pdf

Q62702-C2354 Datasheet Preview — Preview of Q62702-C2354 PDF

Datasheet Details

Part number:

Q62702-C2354

Manufacturer:

Siemens Semiconductor Group

File Size:

35.58 KB

Description:

Npn silicon digital transistor (switching circuit/ inverter/ interface circuit/ driver circuit).
