Q62702-C2356 Datasheet - Siemens Semiconductor Group

Q62702-C2356 PNP Silicon Digital Transistor (Switching circuit/ inverter/ interface circuit/ driver circuit)

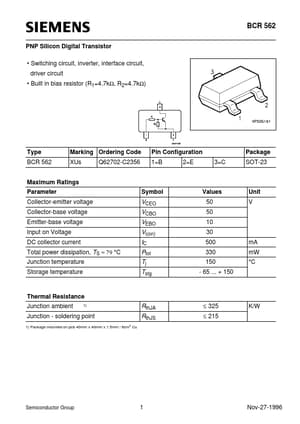

BCR 562 PNP Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=4.7kΩ, R2=4.7kΩ) Type BCR 562 Marking Ordering Code XUs Q62702-C2356 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 79 °C Junction temperature Storage temperature Symbol Values 50 50 1.

Q62702-C2356_SiemensSemiconductorGroup.pdf

Q62702-C2356 Datasheet Preview — Preview of Q62702-C2356 PDF

Datasheet Details

Part number:

Q62702-C2356

Manufacturer:

Siemens Semiconductor Group

File Size:

34.88 KB

Description:

Pnp silicon digital transistor (switching circuit/ inverter/ interface circuit/ driver circuit).
