Q62702-C2375 Datasheet (Siemens Semiconductor Group) - NPN/PNP Silicon Digital Tansistor Array (Switching circuit/ inverter/ interface circuit/ drive circuit)

Q62702-C2375, NPN/PNP Silicon Digital Tansistor Array (Switching circuit/ inverter/ interface circuit/ drive circuit)

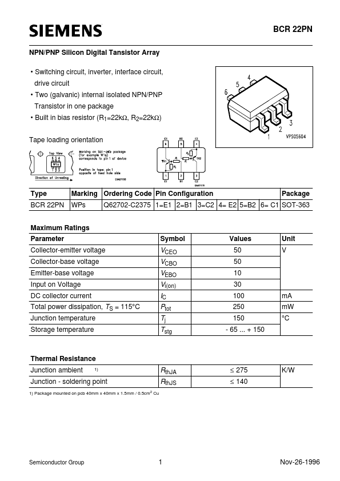

BCR 22PN NPN/PNP Silicon Digital Tansistor Array Switching circuit, inverter, interface circuit, drive circuit Two (galvanic) internal isolated NPN/PNP Transistor in one package Built in bias resistor (R1=22kΩ, R2=22kΩ) Tape loading orientation Type BCR 22PN Marking Ordering Code Pin Configuration WPs Package Q62702-C2375 1=E1 2=B1 3=C2 4= E2 5=B2 6= C1 SOT-363 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input
