Q62702-C2374 Datasheet - Siemens Semiconductor Group

Q62702-C2374 NPN/PNP Silicon AF Transistor Array (For AF input stages and driver applications High current gain Low collector-emitter saturation voltage)

BC 847PN NPN/PNP Silicon AF Transistor Array For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Two (galvanic) internal isolated NPN/PNP Transistors in one package Tape loading orientation PIN Configuration Type BC 847PN Marking Ordering Code 1Ps Q62702-C2374 Package NPN-Transistor SOT-363 PNP-Transistor 1=E 4=E 2=B 5=B 6=C 3=C Maximum Ratings Parameter Collector-emitter voltage Collector-base vol.

Q62702-C2374_SiemensSemiconductorGroup.pdf

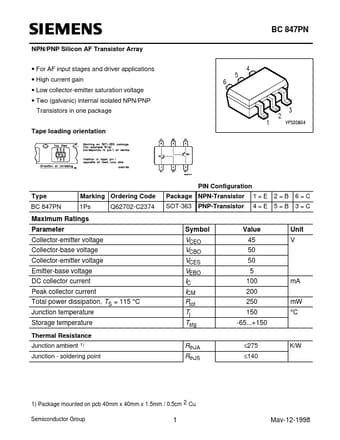

Q62702-C2374 Datasheet Preview — Preview of Q62702-C2374 PDF

Datasheet Details

Part number:

Q62702-C2374

Manufacturer:

Siemens Semiconductor Group

File Size:

229.98 KB

Description:

Npn/pnp silicon af transistor array (for af input stages and driver applications high current gain low collector-emitter saturation voltage).
