60N60D1, 60N60FD1 - 600V FIELD-STOP IGBT

60N60D1 Description

Silan Microelectronics SGT60N60FD1PN/P7/PS/PT_Datasheet 60A, 600V FIELD STOP IGBT .
SGT60N60FD1PN/P7/PS/PT adopts Field Stop IGBT technology, offer the optimum performance for induction Heating,UPS,SMPS and PFC application.

60N60D1 Features

* 60A, 600V,VCE(sat)(typ. )=2.2V@IC=60A
* Low conduction loss
* Fast switching
* High input impedance C 2 1 G 3 E 123 TO-247-3L 12 3 TO-247S-3L 123 TO-3P 1 2 3 TO-3PN NOMENCLATURE IGBT series Current, 70: 70A N : N Channel NE : N-channel planar gate with ESD T : Field Stop 3/

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 60N60D1, 60N60FD1. Please refer to the document for exact specifications by model.

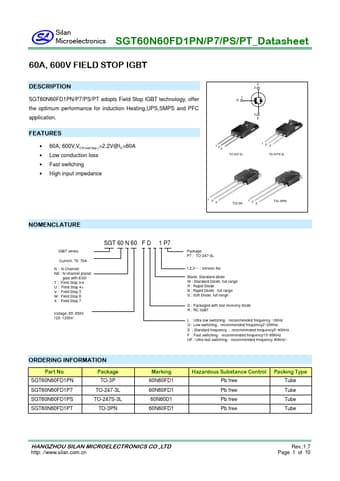

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
60N60D1, 60N60FD1
Manufacturer
Silan Microelectronics
File Size
303.49 KB
Datasheet
60N60FD1-SilanMicroelectronics.pdf
Description
600V FIELD-STOP IGBT
Note
This datasheet PDF includes multiple part numbers: 60N60D1, 60N60FD1.
Please refer to the document for exact specifications by model.
