60N60C2 IGBT

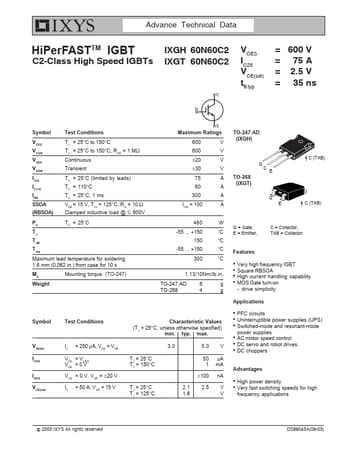

Advance Technical Data HiPerFASTTM IGBT C2-Class High Speed IGBTs IXGH 60N60C2 IXGT 60N60C2 VCES IC25 VCE(sat) tfi typ = 600 V = 75 A = 2.5 V = 35 ns Symbol Test Conditions VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C (limited by leads) TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 Ω Clamped inductive load @ ≤ 600V PC TC = 25°C TJ TJM Tstg Maximum lead temperature for soldering 1.6 mm (0.

60N60C2 Features

* z Very high frequency IGBT z Square RBSOA z High current handling capability z MOS Gate turn-on - drive simplicity Applications z PFC circuits z Uninterruptible power supplies (UPS) z Switched-mode and resonant-mode power supplies z AC motor speed control z DC servo and robot drives z DC choppers A
