SVD13N50T Datasheet - Silan Microelectronics

500V N-CHANNEL MOSFET

SVD13N50T Features

* ∗ 13A,500V,RDS(on)(typ)=0.36Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability ORDERING SPECIFICATIONS Part No. SVD13N50T SVD13N50F Package TO-220-3L TO-220F-3L Marking SVD13N50T SVD13N50F Material Pb free Pb free Packing Tube Tube ABSOLUTE MAXIMUM RATINGS (Tc=25°C

SVD13N50T General Description

SVD13N50T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-Rin TM structure DMOS technology. The improved planar stripe cell and the improved guarding ring terminal have been especially tailored to minimize on-state resistance, provid.

SVD13N50T Datasheet (528.98 KB)

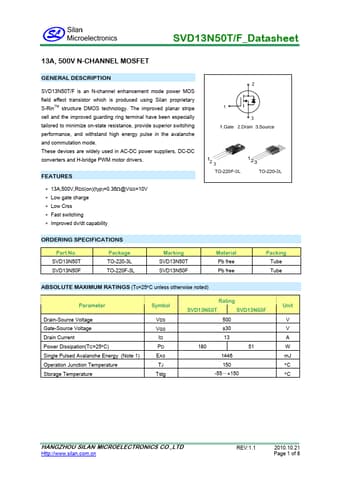

SVD13N50T Datasheet Preview — Preview of SVD13N50T PDF

Datasheet Details

Part number:

SVD13N50T

Manufacturer:

Silan Microelectronics

File Size:

528.98 KB

Description:

500v n-channel mosfet.
