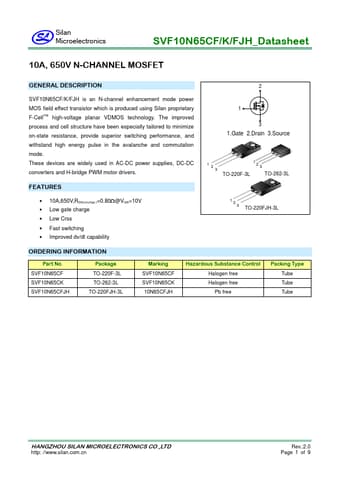

SVF10N65CF 650V N-CHANNEL MOSFET

SVF10N65CF/K/FJH is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switchi.

SVF10N65CF Features

* 2 1 3 1.Gate 2.Drain 3.Source 12 12 3 3 TO-220F-3L TO-262-3L

* 10A,650V,RDS(on)(typ.)=0.80@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 1 2 3 TO-220FJH-3L ORDERING INFORMATION Part No. SVF10N65CF SVF10N65CK SVF10N65CFJH Package TO-
