SVF10N65K, SVF10N65T 650V N-CHANNEL MOSFET

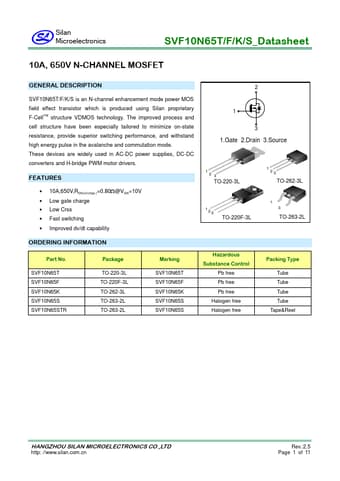

📥 Download Datasheet Datasheet Preview Page 1

Description

Silan Microelectronics SVF10N65T/F/K/S_Datasheet 10A, 650V N-CHANNEL MOSFET GENERAL .
SVF10N65T/F/K/S is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVF10N65K, SVF10N65T. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SVF10N65K, SVF10N65T
Manufacturer
Silan Microelectronics
File Size
308.52 KB
Datasheet
SVF10N65T-SilanMicroelectronics.pdf
Description
650V N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: SVF10N65K, SVF10N65T.
Please refer to the document for exact specifications by model.

Features

* 10A,650V,RDS(on)(typ. )=0.80@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 1 23 TO-220-3L 123 TO-262-3L 123 TO-220F-3L 1 3 TO-263-2L ORDERING INFORMATION Part No. SVF10N65T SVF10N65F SVF10N65K SVF10N65S SV
