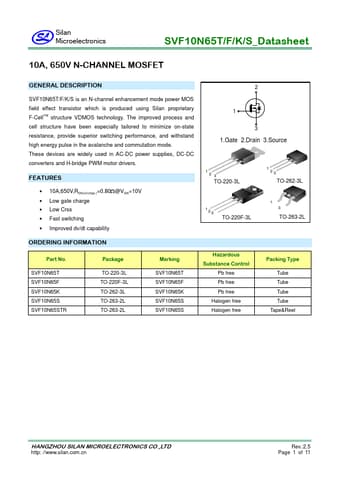

SVF10N65T 650V N-CHANNEL MOSFET

SVF10N65T/F/K/S is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performa.

SVF10N65T Features

* 10A,650V,RDS(on)(typ.)=0.80@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 1 23 TO-220-3L 123 TO-262-3L 123 TO-220F-3L 1 3 TO-263-2L ORDERING INFORMATION Part No. SVF10N65T SVF10N65F SVF10N65K SVF10N65S SV
