SVF4N90MJ, SVF4N90F 900V N-CHANNEL MOSFET

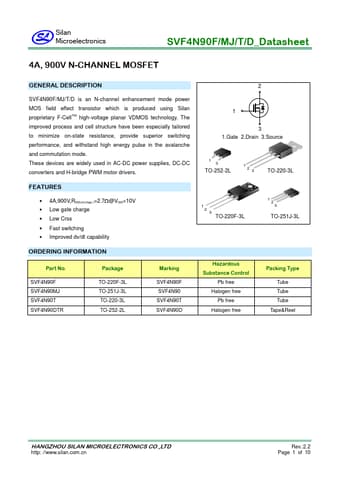

📥 Download Datasheet  Datasheet Preview Page 1

Description

Silan Microelectronics SVF4N90F/MJ/T/D_Datasheet 4A, 900V N-CHANNEL MOSFET GENERAL .
SVF4N90F/MJ/T/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage pla.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVF4N90MJ, SVF4N90F. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SVF4N90MJ, SVF4N90F
Manufacturer
Silan Microelectronics
File Size
290.01 KB
Datasheet
SVF4N90F-SilanMicroelectronics.pdf
Description
900V N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: SVF4N90MJ, SVF4N90F.
Please refer to the document for exact specifications by model.

Features

* 4A,900V,RDS(on)(typ. )=2.7@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability ORDERING INFORMATION Part No. SVF4N90F SVF4N90MJ SVF4N90T SVF4N90DTR Package TO-220F-3L TO-251J-3L TO-220-3L TO-252-2L Marking SVF4N90F SVF4N90 SVF4N90T SVF4N90D 2
