SVF4N80D, SVF4N80F 800V N-CHANNEL MOSFET

Silan Microelectronics

Description

SVF4N80F/D/MJ/K_Datasheet 4A, 800V N-CHANNEL MOSFET GENERAL .
SVF4N80F/D/MJ/K is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage pla.

📥 Download Datasheet

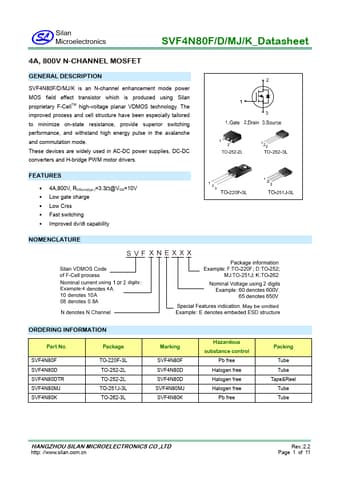

SVF4N80D Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF4N80D, SVF4N80F. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SVF4N80D, SVF4N80F
Manufacturer: Silan Microelectronics
File Size: 687.94 KB
Datasheet: SVF4N80F-SilanMicroelectronics.pdf
Description: 800V N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: SVF4N80D, SVF4N80F.
Please refer to the document for exact specifications by model.

Features

* 4A,800V, RDS(on)(typ. )=3.3@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF4N80F SVF4N80D SVF4N80DTR SVF4N80MJ SVF4N80K Package TO-220F-3L TO-252-2L TO-252-2L TO-251J-3L TO-262-3L Marking SVF4N
