SVF4N80F

800V N-CHANNEL MOSFET

SVF4N80F Features

* 4A,800V, RDS(on)(typ.)=3.3@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF4N80F SVF4N80D SVF4N80DTR SVF4N80MJ SVF4N80K Package TO-220F-3L TO-252-2L TO-252-2L TO-251J-3L TO-262-3L Marking SVF4N

SVF4N80F General Description

SVF4N80F/D/MJ/K is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switchin.

SVF4N80F Datasheet (687.94 KB)

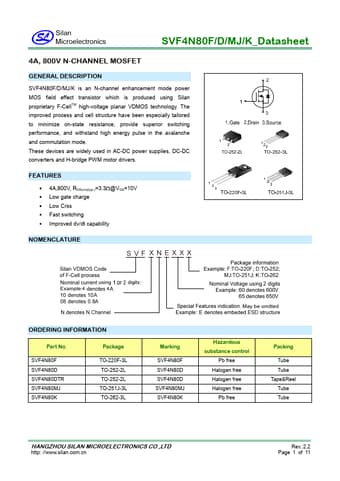

Preview of SVF4N80F PDF

Datasheet Details

Part number:

SVF4N80F

Manufacturer:

Silan Microelectronics

File Size:

687.94 KB

Description:

800v n-channel mosfet.
