SVF6N60MJ

MOSFET

SVF6N60MJ Features

* ∗ 6A,600V,RDS(on(typ)=1.35Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF6N60MJ SVF6N60F SVF6N60D SVF6N60DTR Package TO-251J-3L TO-220F-3L TO-252-2L TO-252-2L Marking SVF6N60MJ SVF6N60F SVF6N60D SVF6N60D Material

SVF6N60MJ General Description

SVF6N60MJ/F/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide .

SVF6N60MJ Datasheet (541.77 KB)

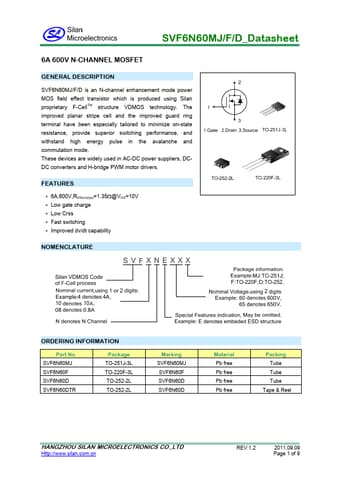

Preview of SVF6N60MJ PDF

Datasheet Details

Part number:

SVF6N60MJ

Manufacturer:

Silan Microelectronics

File Size:

541.77 KB

Description:

Mosfet.
