SVF6N70K Datasheet - Silan Microelectronics

700V N-CHANNEL MOSFET

SVF6N70K Features

* 6A,700V,RDS(on(typ.)=1.35@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 12 3 TO-262-3L 123 TO-251N-3L 12 3 TO-251J-3L 1 3 TO-252-2L ORDERING INFORMATION Part No. SVF6N70MJG SVF6N70DTR SVF6N70K SVF6N70MN

SVF6N70K General Description

SVF6N70MJG/D/K/N is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching perform.

SVF6N70K Datasheet (370.24 KB)

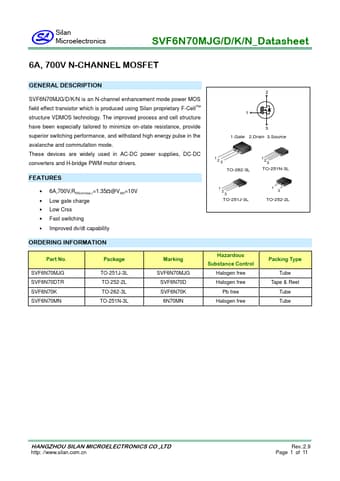

SVF6N70K Datasheet Preview — Preview of SVF6N70K PDF

Datasheet Details

Part number:

SVF6N70K

Manufacturer:

Silan Microelectronics

File Size:

370.24 KB

Description:

700v n-channel mosfet.
