SVF6N70MJG - 700V N-CHANNEL MOSFET

Silan Microelectronics

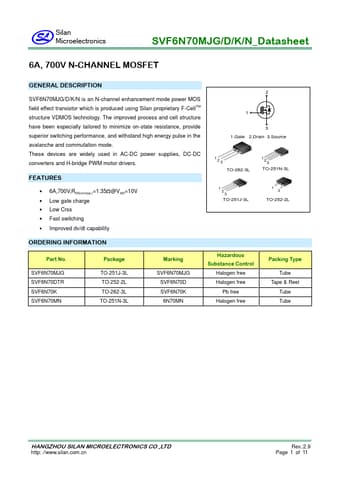

SVF6N70MJG Datasheet Preview — Preview of SVF6N70MJG PDF

Datasheet Details

Part number	SVF6N70MJG
Manufacturer	Silan Microelectronics
File Size	370.24 KB
Description	700V N-CHANNEL MOSFET
Datasheet	SVF6N70MJG-SilanMicroelectronics.pdf

SVF6N70MJG Product details

Description

SVF6N70MJG/D/K/N is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.

Features

6A,700V,RDS(on(typ. )=1.35@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 12 3 TO-262-3L 123 TO-251N-3L 12 3 TO-251J-3L 1 3 TO-252-2L.
