SVF7N60CD, SVF7N60CF Datasheet - Silan Microelectronics

SVF7N60CF-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVF7N60CD, SVF7N60CF. Please refer to the document for exact specifications by model.

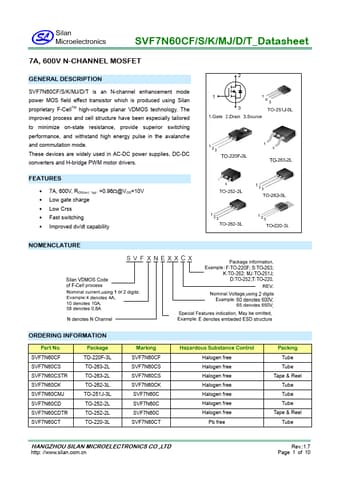

SVF7N60CD Datasheet Preview Page 2 SVF7N60CD Datasheet Preview Page 3

Datasheet Details

Part number:

SVF7N60CD, SVF7N60CF

Manufacturer:

Silan Microelectronics

File Size:

952.04 KB

Description:

600v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF7N60CD, SVF7N60CF.
Please refer to the document for exact specifications by model.

SVF7N60CD, SVF7N60CF, 600V N-CHANNEL MOSFET

SVF7N60CF/S/K/MJ/D/T is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.

The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior swi

SVF7N60CD Features

* 7A, 600V, RDS(on)(typ)=0.96@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF7N60CF SVF7N60CS SVF7N60CSTR SVF7N60CK SVF7N60CMJ SVF7N60CD SVF7N60CDTR SVF7N60CT Package TO-220F-3L TO-263-2L TO-263-
