SVF7N60DTR, SVF7N60S 600V N-CHANNEL MOSFET

SVF7N60DTR Description

SVF7N60F/S/D_Datasheet 7A, 600V N-CHANNEL MOSFET GENERAL .
SVF7N60F/S/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar.

SVF7N60DTR Features

* 7A, 600V, RDS(on)（typ）=0.96@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability ORDERING INFORMATION Part No. SVF7N60F SVF7N60S SVF7N60STR SVF7N60DTR Package TO-220F-3L TO-263-2L TO-263-2L TO-252-2L Marking SVF7N60F SVF7N60S SVF7N60S SVF7N60D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVF7N60DTR, SVF7N60S. Please refer to the document for exact specifications by model.

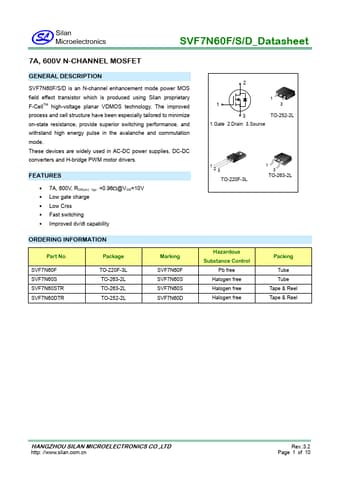

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVF7N60DTR, SVF7N60S
Manufacturer
Silan Microelectronics
File Size
518.66 KB
Datasheet
SVF7N60S-SilanMicroelectronics.pdf
Description
600V N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: SVF7N60DTR, SVF7N60S.
Please refer to the document for exact specifications by model.
