SVF7N60F

600V N-CHANNEL MOSFET

SVF7N60F Features

* 7A, 600V, RDS(on)（typ）=0.96@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF7N60F SVF7N60S SVF7N60STR SVF7N60DTR Package TO-220F-3L TO-263-2L TO-263-2L TO-252-2L Marking SVF7N60F SVF7N60S SVF7N60S SVF7N60D

SVF7N60F General Description

SVF7N60F/S/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching p.

SVF7N60F Datasheet (518.66 KB)

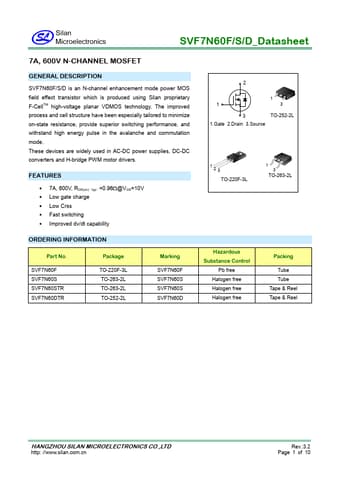

Preview of SVF7N60F PDF

Datasheet Details

Part number:

SVF7N60F

Manufacturer:

Silan Microelectronics

File Size:

518.66 KB

Description:

600v n-channel mosfet.
