SVG105R4NT, 100V N-CHANNEL MOSFET

Silan Microelectronics SVG105R4NT(S)(KL)_Datasheet 120A, 100V N-CHANNEL MOSFET .
SVG105R4NT(S)(KL) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

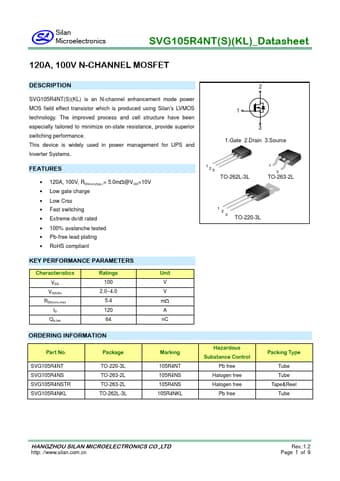

datasheet Preview Page 1 from Datasheet4u.com

SVG105R4NT-SilanMicroelectronics.pdf

SVG105R4NT Datasheet Preview — Preview of SVG105R4NT PDF

Datasheet Details

Part number:

SVG105R4NT

Manufacturer:

Silan Microelectronics

File Size:

345.35 KB

Description:

100V N-CHANNEL MOSFET

Features

* 120A, 100V, RDS(on)(typ. )= 5.0m@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Extreme dv/dt rated
* 100% avalanche tested
* Pb-free lead plating
* RoHS compliant 2 1 3 1.Gate 2.Drain 3.Source 12 3 TO-262L-3L 1 3 TO-263-2L 1 2 3 TO-220-3L KEY PERFORMA
