SVS20N60FJD2 Datasheet, Transistor, Silan Microelectronics

SVS20N60FJD2 Features

  • Transistor
  • 20A, 600V, RDS(on)(typ.)=0.16@VGS=10V
  • New revolutionary high voltage technology
  • Ultra low gate charge
  • Periodic avalanche rated
  • Extreme

PDF File Details

Part number:

SVS20N60FJD2

Manufacturer:

Silan Microelectronics

File Size:

474.58kb

Download:

📄 Datasheet

Description:

600v super junction mos power transistor. SVS20N60FJ(K)(T)(PN)(S)(P7)(F)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MO

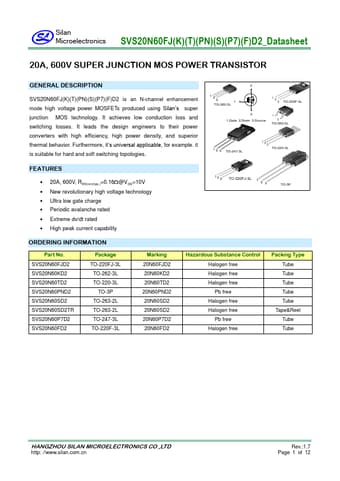

Datasheet Preview: SVS20N60FJD2 📥 Download PDF (474.58kb)
Page 2 of SVS20N60FJD2 Page 3 of SVS20N60FJD2
