SVS20N60P7D2

600V SUPER JUNCTION MOS POWER TRANSISTOR

Silan Microelectronics

SVS20N60P7D2 Features

* 20A, 600V, RDS(on)(typ.)=0.16@VGS=10V

* New revolutionary high voltage technology

* Ultra low gate charge

* Periodic avalanche rated

* Extreme dv/dt rated

* High peak current capability 12 3 TO-220FJ-3L 1 2 3 TO-3P ORDERING INFORMATION Part No. SVS20N60FJD2 SVS20N60KD

SVS20N60P7D2 General Description

SVS20N60FJ(K)(T)(PN)(S)(P7)(F)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MOS technology. It achieves low conduction loss and switching losses. It leads the design engineers to their power converters with high efficiency, high power density, a.

SVS20N60P7D2 Datasheet (474.58 KB)

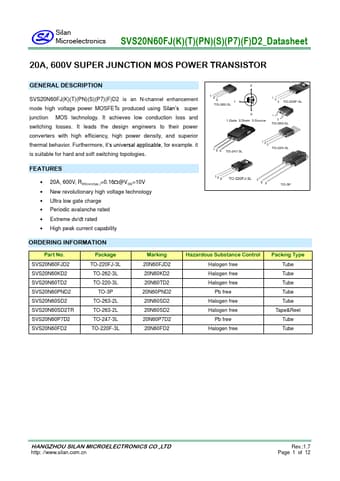

SVS20N60P7D2 Datasheet Preview — Preview of SVS20N60P7D2 PDF

Datasheet Details

Part number:

SVS20N60P7D2

Manufacturer:

Silan Microelectronics

File Size:

474.58 KB

Description:

600v super junction mos power transistor.
