SVS47N60PN Datasheet - Silan Microelectronics

600V DP MOS POWER TRANSISTOR

SVS47N60PN Features

* 47A, 600V, RDS(on)(typ.)=55m@VGS=10V

* New revolutionary high voltage technology

* Ultra low gate charge

* Periodic avalanche rated

* Extreme dv/dt rated

* High peak current capability 1 23 TO-3P ORDERING INFORMATION Part No. SVS47N60PN Package TO-3P Marking 47N60 Ha

SVS47N60PN General Description

SVS47N60PN is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s DP MOS technology. It achieves low conduction loss and switching losses. It leads the design engineers to their power converters with high efficiency, high power density, and superior thermal behavior. Furt.

SVS47N60PN Datasheet (372.68 KB)

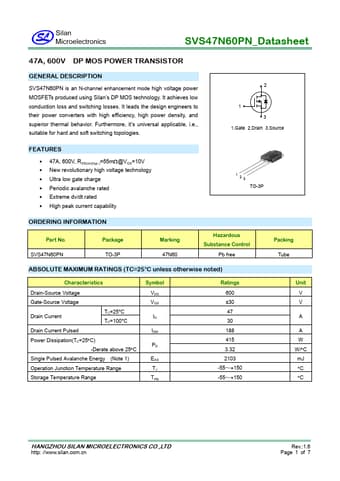

SVS47N60PN Datasheet Preview — Preview of SVS47N60PN PDF

Datasheet Details

Part number:

SVS47N60PN

Manufacturer:

Silan Microelectronics

File Size:

372.68 KB

Description:

600v dp mos power transistor.
