SGTP140V120FDB7PW4

1200V FIELD STOP IGBT

SGTP140V120FDB7PW4 Features

* low conduction loss and switching loss, is applicable to photovoltaic, UPS, SMPS and PFC fields. FEATURES

* 140A, 1200V, VCE(sat)(typ.)=1.6V@IC=140A

* Low conduction loss

* Fast switching

* High input impedance

* TJmax=175C 4 G C 1 Pin definition  Pin1&backside-Collector  P

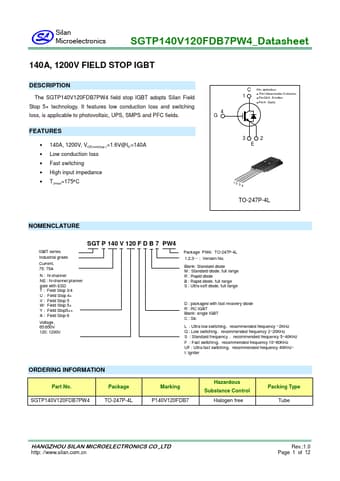

SGTP140V120FDB7PW4 Datasheet (611.73 KB)

Preview of SGTP140V120FDB7PW4 PDF

Datasheet Details

Part number:

SGTP140V120FDB7PW4

Manufacturer:

Silan Semiconductors

File Size:

611.73 KB

Description:

1200v field stop igbt.
