SGTP75V65FDB1P7 650V FIELD STOP IGBT

SGTP75V65FDB1P7 Features

* low conduction loss and switching loss. This device is applicable to photovoltaic, UPS, SMPS, and PFC fields. FEATURES

* 75A, 650V, VCE(sat)(typ.)=1.65V@IC=75A

* Low conduction loss

* Ultra-fast switching

* High input impedance

* TJmax.=175C C 2 1 G 3 E 123 TO-247-3L NOMENCLAT

SGTP75V65FDB1P7-SilanSemiconductors_removed.pdf

This datasheet PDF includes multiple part numbers: SGTP75V65FDB1P7, SGTP75V65FDB1P7-SilanSemiconductors. Please refer to the document for exact specifications by model.

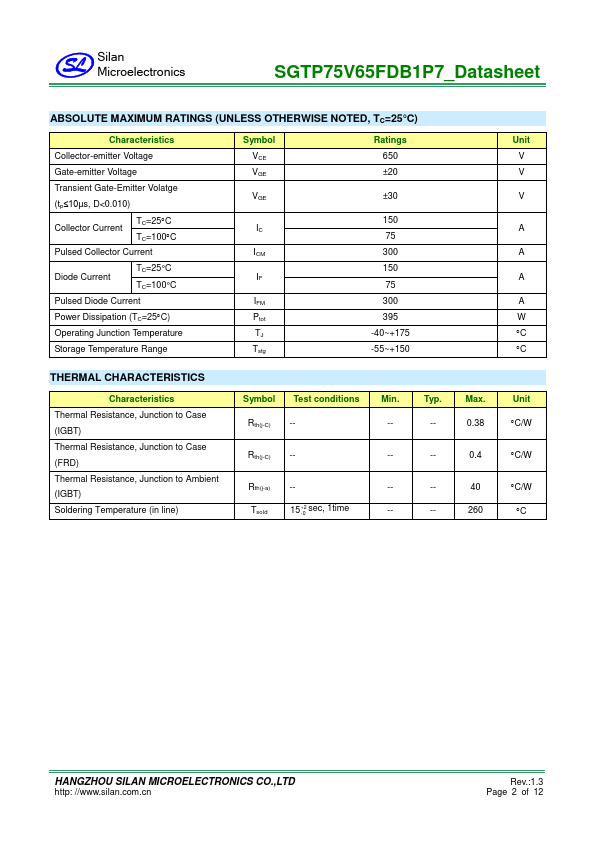

SGTP75V65FDB1P7 Datasheet Preview Page 2 SGTP75V65FDB1P7 Datasheet Preview Page 3

Datasheet Details

Part number:

SGTP75V65FDB1P7, SGTP75V65FDB1P7-SilanSemiconductors

Manufacturer:

Silan Semiconductors

File Size:

453.82 KB

Description:

650v field stop igbt.

Note:

This datasheet PDF includes multiple part numbers: SGTP75V65FDB1P7, SGTP75V65FDB1P7-SilanSemiconductors.
Please refer to the document for exact specifications by model.
